50*17*6.5mm Piezo Ceramic Ring Pzt8 Ultrasonic Transducer Sensor For Ultrasonic Welder
how do piezoelectric ceramic materials work?
The piezoelectric ceramic plate is the main component of the buzzer plate (device), so it is called a piezoelectric element. The reason why piezoelectric ceramic plates can emit the sound of beeping is to use the principle of piezoelectric effect. The piezoelectric effect has a positive piezoelectric effect and inverse piezoelectric effect two kinds.
Piezoelectric effect: when the piezoelectric ceramic chip is applied to an external force, the piezoelectric chip will produce an electric charge, this phenomenon is called the positive piezoelectric effect; On the contrary, when the electric field is applied to the piezoelectric plate, the piezoelectric ceramic plate will produce mechanical deformation, and its strain is proportional to the strength of the electric field, which is called the inverse piezoelectric effect, the stronger the electric field intensity, the greater the amplitude of vibration. This phenomenon is called the inverse piezoelectric effect: voltage-pressure and all kinds of piezoelectric ceramic devices work by using this characteristic.
where are ceramics used?
Some Application of Piezo Ceramic:
1. ultrasonic cleaning transducer
2. ultrasonic welding transducer
3. ultrasonic beauty transducer
4. ultrasonic underwater transducer
5. ultrasonic immersible transucer
6. ultrasonic screening transducer
7. ultrasonic cutting transducer
8. ultrasonic atomization transducer
9. ultrasonic emulsifier
Technical parameters:
| Product Name | Piezoelectric Ceramic Discs |
| Outer Dimension | 50mm |
| Inner Dimension | 17mm |
| Thickness | 6.5mm |
| Sensitivity | High |
| Measuring Medium | Solid |
| Usage | ceramic discs for ultrasonic welding convertor |
Other models available:
| Model | Capacitance | Loss | Resonant Frequency | Coupling factors | Mechanical quality factor |
| CT(pF) | tgδ(%) | Fs(kHz) | Kp(%) | Qm |
| RSP-82-Φ10×Φ5×2 | 265 | 0.3 | 154.7 | 53 | 800 |
| RSP-82-Φ13×Φ5.3×2.2 | 455 | 0.3 | 126.8 | 53 | 800 |
| RSP-82-Φ15×Φ6×2 | 670 | 0.3 | 110 | 53 | 800 |
| RSP-82-Φ18×Φ8×7 | 265 | 0.3 | 89 | 53 | 800 |
| RSP-82-Φ20×Φ8×6 | 400 | 0.3 | 82.9 | 53 | 800 |
| RSP-82-Φ20×Φ10×5 | 425 | 0.3 | 77.3 | 53 | 800 |
| RSP-82-Φ25×Φ10×5 | 750 | 0.3 | 66.3 | 53 | 800 |
| RSP-82-Φ25×Φ12×5 | 690 | 0.3 | 62.7 | 53 | 800 |
| RSP-82-Φ30×Φ10×5 | 1140 | 0.3 | 58 | 53 | 800 |
| RSP-82-Φ30×Φ12×5 | 1075 | 0.3 | 55 | 53 | 800 |
| RSP-82-Φ32×Φ12×5 | 1255 | 0.3 | 52.7 | 53 | 800 |
| RSP-82-Φ35×Φ15×5 | 1425 | 0.3 | 46.4 | 53 | 800 |
| RSP-82-Φ38×Φ15×5 | 1735 | 0.3 | 43.8 | 53 | 800 |
| RSP-82-Φ40×Φ12×5 | 2075 | 0.3 | 44.6 | 53 | 800 |
| RSP-82-Φ40×Φ15×5 | 1960 | 0.3 | 42.2 | 53 | 800 |
| RSP-82-Φ45×Φ15×5 | 2565 | 0.3 | 38.7 | 53 | 800 |
| Model | Capacitance | Loss | Resonant Frequency | Coupling factors | Mechanical quality factor |
| CT(pF) | tgδ(%) | Fs(kHz) | Kp(%) | Qm |
| RSP-82-Φ45×Φ17×5 | 2475 | 0.3 | 37.4 | 53 | 800 |
| RSP-82-Φ49×Φ23×6 | 2225 | 0.3 | 32.2 | 53 | 800 |
| RSP-82-Φ50×Φ17×5 | 3150 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ17×6.5 | 2425 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ17×7.5 | 2100 | 0.3 | 34.6 | 53 | 800 |
| RSP-82-Φ50×Φ20×6 | 2495 | 0.3 | 33.1 | 53 | 800 |
| RSP-82-Φ50×Φ20×7 | 2135 | 0.3 | 33.1 | 53 | 800 |
| RSP-82-Φ50×Φ23×6 | 2340 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ50×Φ23×6.5 | 2170 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ50×Φ23×7 | 2005 | 0.3 | 31.8 | 53 | 800 |
| RSP-82-Φ55×Φ20×8 | 2340 | 0.3 | 30.9 | 53 | 800 |
| RSP-82-Φ55×Φ26×7 | 2390 | 0.3 | 28.6 | 53 | 800 |
| RSP-82-Φ60×Φ30×10 | 1925 | 0.3 | 25.8 | 53 | 800 |
| RSP-82-Φ69×Φ33×11 | 2380 | 0.3 | 22.7 | 53 | 800 |
| RSP-82-Φ70×Φ30×10 | 2850 | 0.3 | 22.7 | 53 | 800 |
| RSP-82-Φ100×1.4-200 | 52000 | 0.3 | 23 | 53 | 800 |
Features:
* Good stability
* High sensitivity
* Low heat
* High vibration efficiency
Piezoelectric materials of piezoelectric ceramic discs: PZT4, PZT5, PZT8, or other required piezoelectric materials.
Pzt8 piezoelectric ceramic rings can also be customized, If you need other sizes of piezoelectric ceramic rings, feel free to contact us.

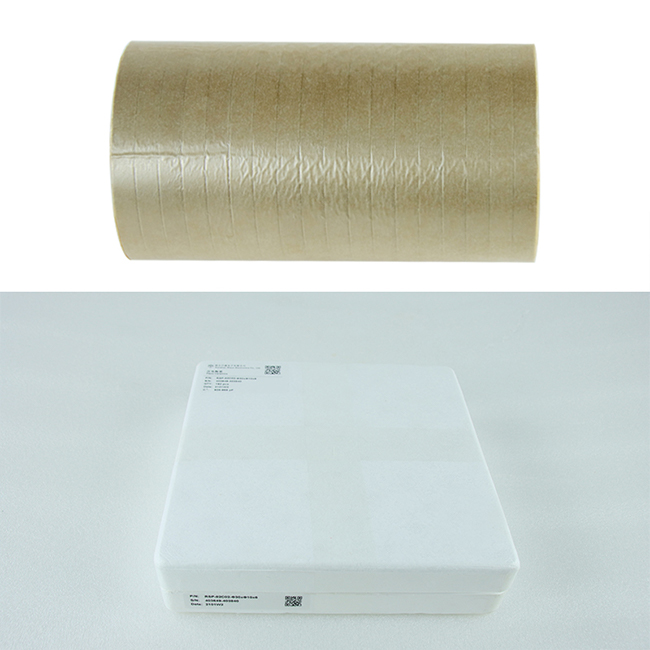

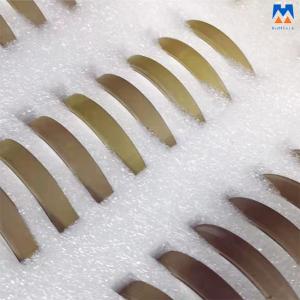

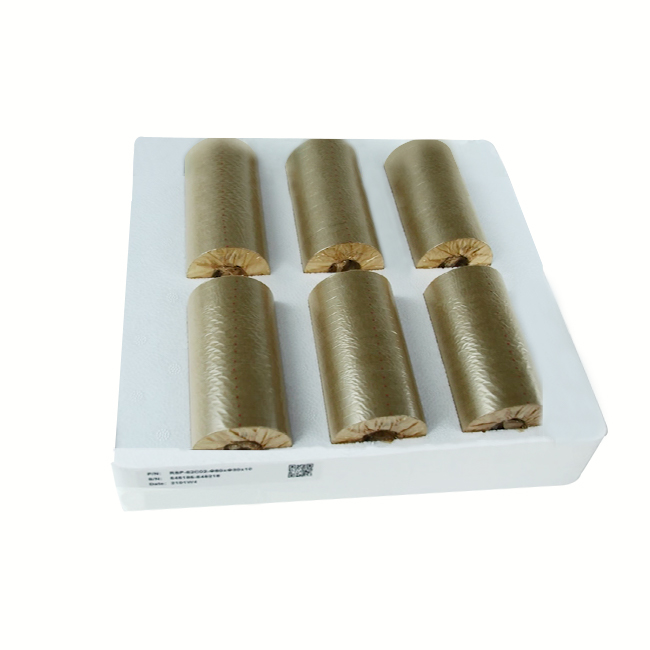

Detailed Photos:
